Making Multiples with Blanking Dies with Jayne Redman
Friday, December 4, 2020; 9:30AM - 4:30PM PT (Pacific Time)
Saturday, December 5, 2020; 9:30AM - 4:30PM PT (Pacific Time)
Sunday, December 6, 2020; 9:30AM - 4:30PM PT (Pacific Time)

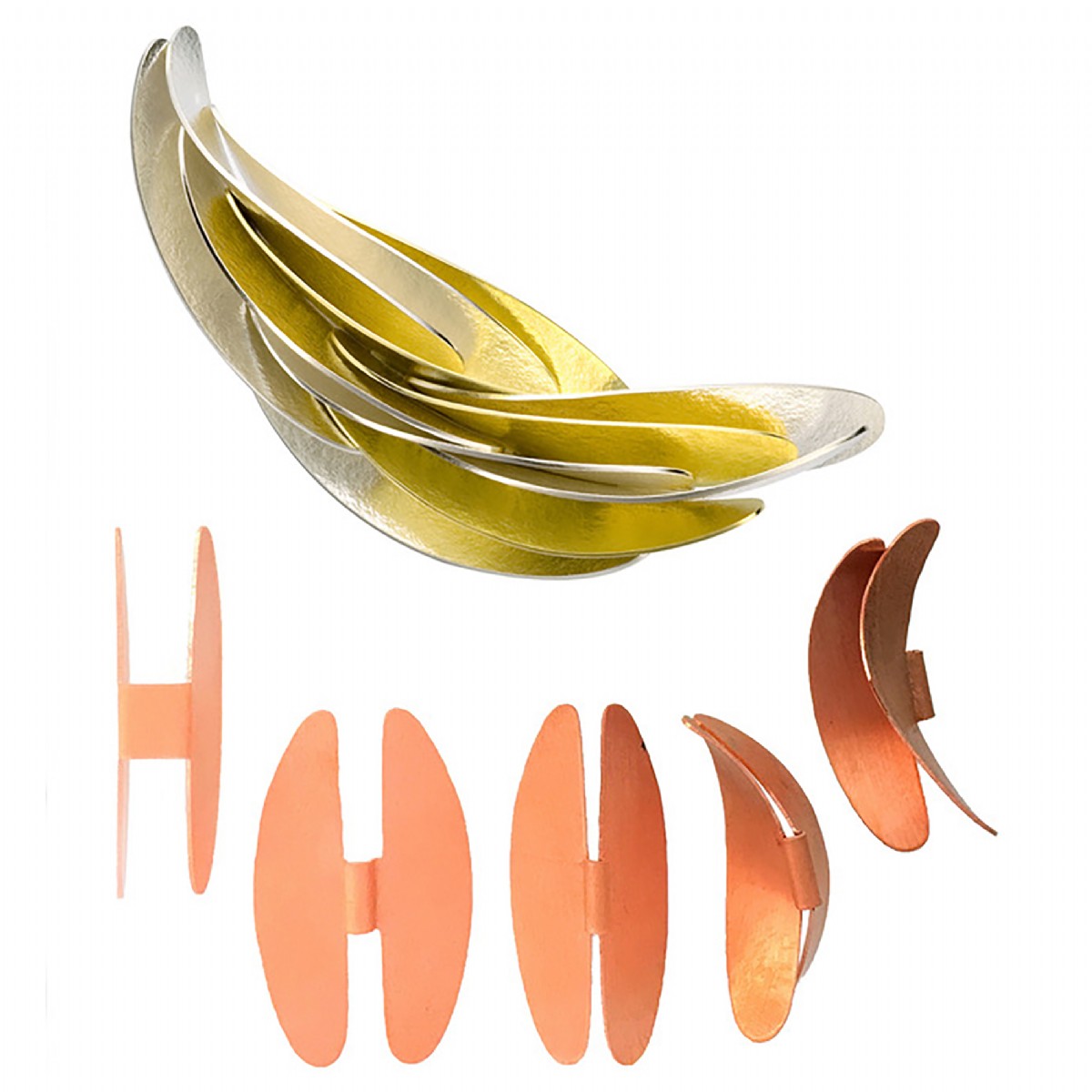

Take your designs from flat to three dimensional with this in-depth workshop from Jayne Redman. Learn the innovative design and assembly concepts that Jayne has developed over 40 plus years of metalsmithing. Jayne will teach you the principles behind centrally radiating forms, properly nested forms, spacing for slotted forms, faux hinge assembly, and tab construction. She will show you how to use your computer as a design tool and how to duplicate the same steps manually.

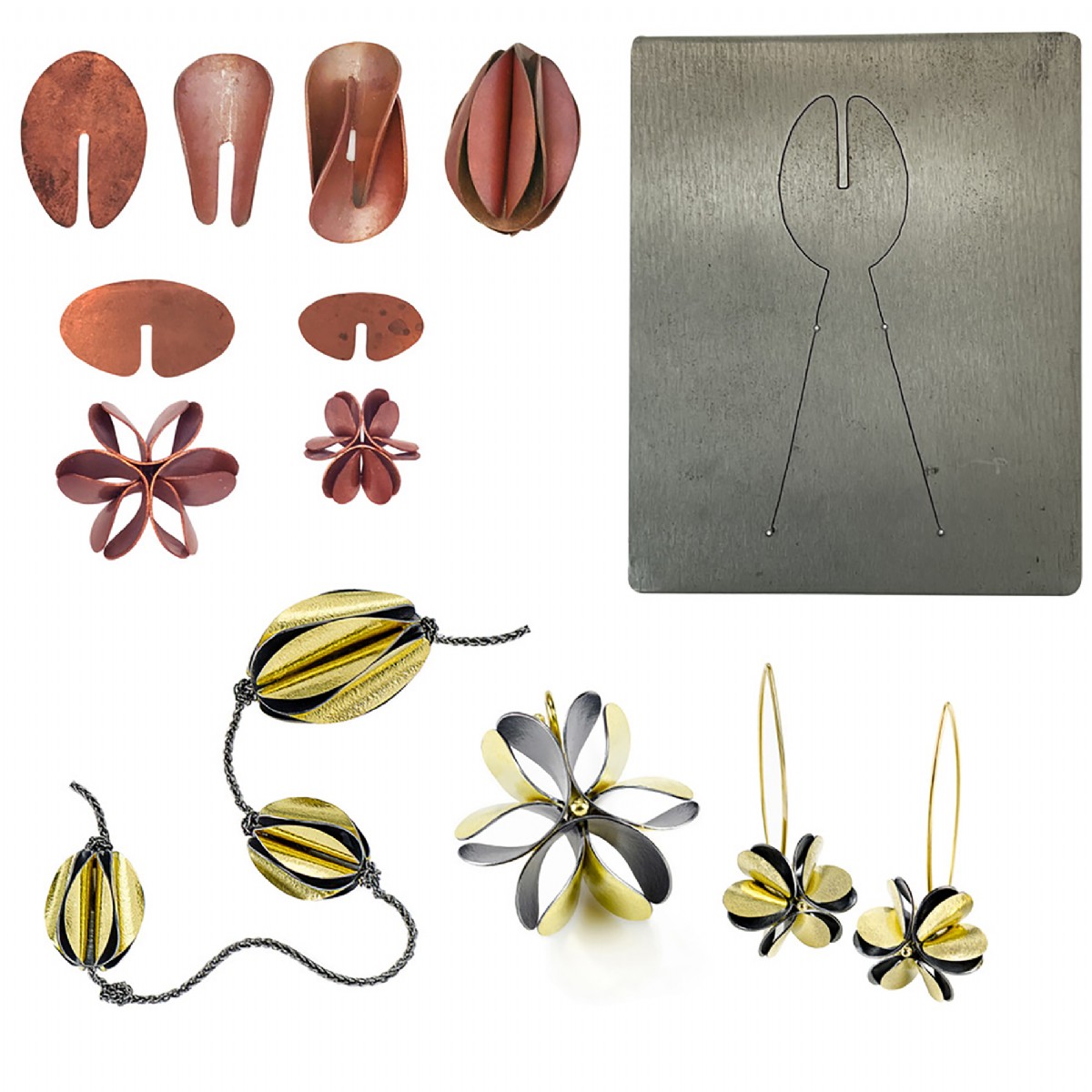

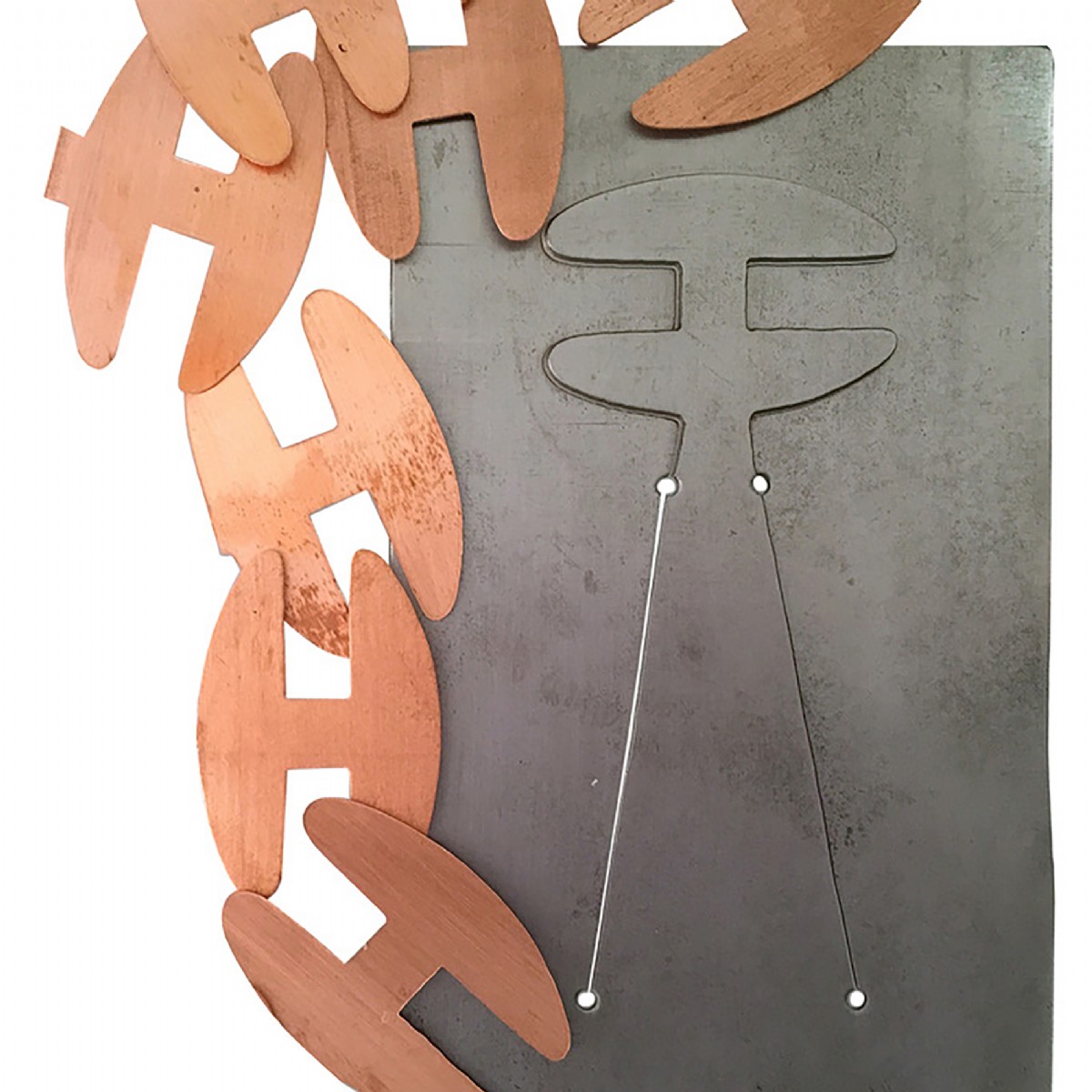

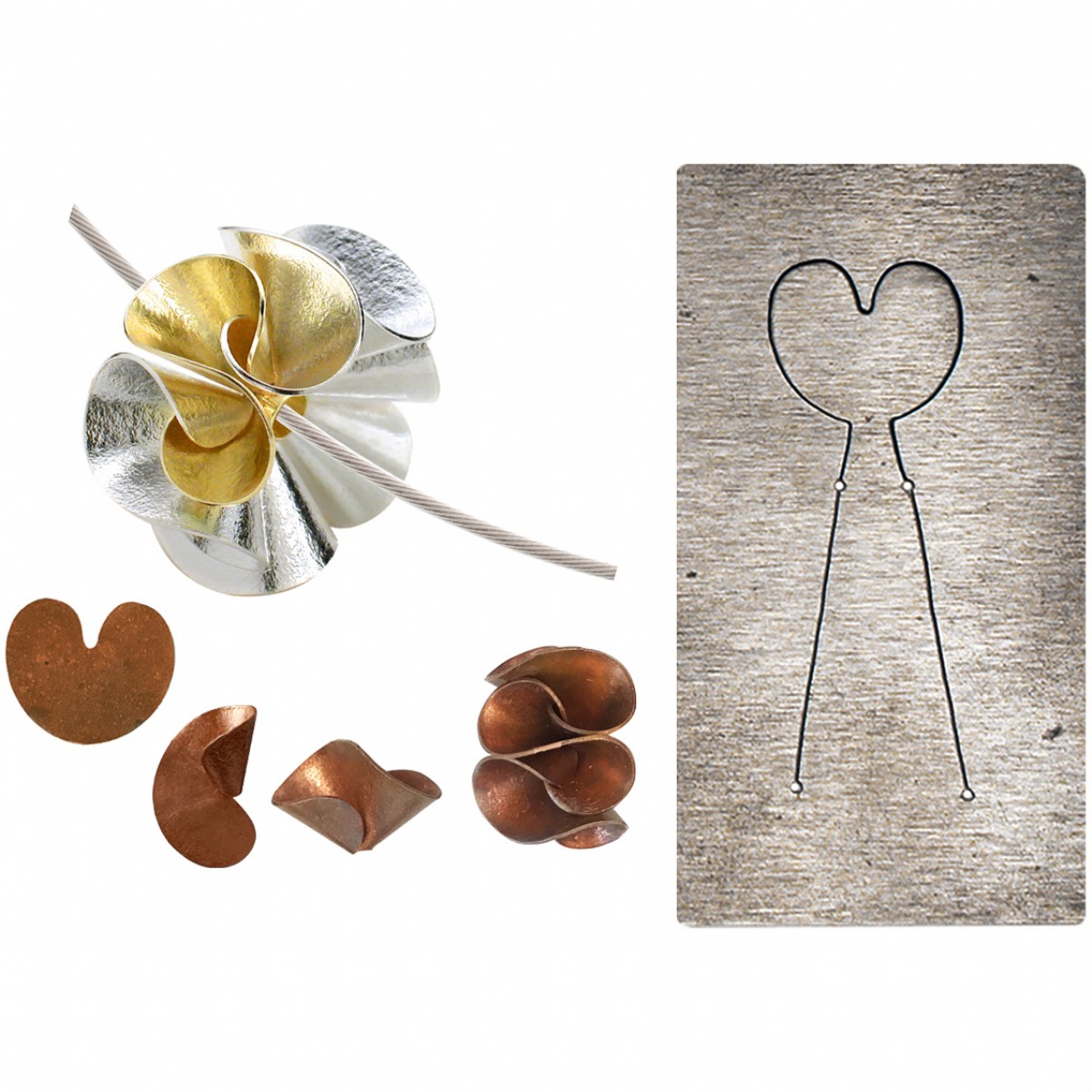

Learn how to make blanking (pancake) dies to quickly cut out the shapes you develop in class and get lost in the process of experimenting with forming and assembly. Speed up your production or incorporate identical shapes in one-of-a-kind pieces.
This course is available as a live online class. Please check this page for times and formats available.
Techniques taught:
• Developing flat patterns used for three dimensional forms
• Prototyping with heavy aluminum foil
• Using your computer as a design tool or creating the same design manually.
• Layout for a correctly designed blanking die
• How to correctly use a saw frame and choosing saw blades for sawing tool steel
• How to determine rotational angle of your bench pin relative to thickness of tool steel and saw blade
• How to saw a blanking die out of tool steel
• How to use a hydraulic press or bench vise to blank out metal with blanking dies
• Tips and tricks using flex shaft accessories
• How to make your own forming tools
Recordings of this class are available for 30 days from the final class session.
A kit of materials needed for this class is $140, and is payable directly to Jayne. The kit includes material for the dies themselves, as well as other needed supplies.
A handout will be included with the kit. On the last page of the handout is a list of tools and materials Jayne uses in her work. She will be demonstrating or mentioning many of them.
Read what students have to say about our online classes on the testimonials page.
Tools for this Class
This is a list of tools you’ll need to practice the techniques shown in class. A list of tools with recommended suppliers for the best prices will be sent to you after registration. Please use that list and the links provided in the PDF to check the recommended tools and make sure that you have the correct ones. Please If you have questions about the tool list, please contact us.
- Bonny Doon Hydraulic Press or Harbor Freight bench press or large bench vise
- If using a bench vise: two 1/2” thick pieces of cast acrylic and a length of pipe at least 2 feet long
- Flex shaft or Dremel
- Center punch or 1.5mm ball bur
- Dividers
- Bur life
- Drill bits: #58 or #60
- 5" or 6" deep saw frame
- Flat or half round hand file (#0 or #1 cut) or belt sander
- Medium snap-on-discs
- Snap-on-disc mandrel
- 23 gauge or thinner copper or brass sheet
- 19 gauge or thinner copper or brass sheet
- Joyce Chen Shears or Pro Shears
- Rubber cement or Scotch Permanent Glue Stick
- Scissors
- Ruler
- Paper, including tracing paper and white printer/copier paper
- Drawing materials including rulers, Sharpie markers, pencils and erasers, compasses, and plastic circle and oval templates
- Apron
- Dust mask
- Safety Glasses and eye magnification if needed
- A computer, phone or tablet to use the free Zoom app for class. An additional device (capable of accessing the Zoom link) and holder to position it over your work space allowing the instructor to see your work.
Also needed (contact Jayne to add these into your kit or to rent for the class)
- Jayne Redman Rotational Bench Pin: Dovetail Base with Aluminum Surface
- Jayne Redman Dovetail Mounting Plate
- Magnetic protractor
Read what students have to say about our online classes on the testimonials page.
Prerequisites:
Students should have previous experience with sawing, filing and using a flex shaft. Any of our basic jewelry classes or the equivalent experience will cover these skills.
